Anderson Powerpole® Connector Series
This versatile connector series invented by Anderson Power Products (APP®) meets a wide range of power connection needs. The four housing sizes in the Powerpole® product family can carry a wide range of amperage and wire sizes in the most compact footprint. For currents up to 350A and from wire sizes of #20 AWG (0.75 mm²) to 3/0 (70 mm²). Powerpole® can handle them all! A wide range of colored housing options can be stacked together to create a proven reliable custom connector. These housings can be used with different contacts to create wire-to-wire, wire-to board, or wire-to-busbar connections. The Powerpole® connector combines high quality materials with a cost-effective and innovative design for powerful versatility.
FEATURES
- Flat wiping contact system
Allows for minimal contact resistance at high current, wiping action cleans contact surface during connection/disconnection. - Interchangeable genderless design
Makes assembly quick and easy and reduces number of parts stocked. - Silver plated contacts (also offer Tin on 15/45)
Offers greatest longevity when using high power, elevated temperature applications. - Colored coded housings
Help to ensure that connectors are assembled and mated correctly. - Molded-in dovetails
Secures individual connectors together. - Powerpole® pin & socket series connector (PP10/30)
Green housing is a visual identification of ground terminal - Chemical Resistant Housings available
- UL94 V-0 housing material
Provides security in knowledge that the connector chosen meets strict flammability ratings
Powerpole® Connectors - PP10 Pin & Socket
Powerpole® pin & socket series connector, designed as ground terminal are for make-first/break-last connections. They provide 600 Volts continuous, AC or DC operation. Wire sizes range from #14 to #16 AWG (2.1 to 1.3 mm²). Can be assembled with standard Powerpole PP15/45 series.
Powerpole® Connectors - PP30 Pin & Socket
Powerpole® pin & socket series connector, designed as ground terminal are for make first/break-last connections. They provide 600 Volts continuous, AC or DC operation This series accommodates #10 AWG (5.3 mm²). Can be assembled with standard Powerpole PP15 series.
Powerpole® Connectors – PP15: up to 55 Amps
PP15/45 series are the smallest Powerpole® housings. They can be used for wire-to-wire or wire-to-board applications. Wire sizes from #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilities up to 55 amps per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole® series. Please don’t forget to check our Powerpole Pak connector series for the blindmate capabilities.
Powerpole® Connectors - PP75: up to 120 Amps
PP75 series Powerpole® housings can be used for wire-to-wire, wire-to-board, and wire-to-busbar applications. Wire sizes from #16 AWG (1.3 mm²) to #6 (13.3 mm²) offer power capabilities up to 120 amps per pole. Locking housings offer the capability to secure Powerpole® housings to each other and to mounting pads.
Powerpole® Connectors - PP120: up to 240 Amps
PP120 series Powerpole® housings are designed to accommodate up to 1/0 (50 mm²) wires and handle high currents up to 240 amps. Reducing bushings allow PP120 to accept down to #8 (10 mm²) wires. Multiple colors of stackable housings combine with low resistance flat wiping technology to offer powerful connection capability.
Powerpole® Connectors - PP180: up to 350 Amps
PP180 are the largest of the Powerpole® series housings. They are designed to accommodate up to 3/0 (70 mm²) wires and handle high currents up to 350 amps. Busbar contacts are also
available for power inputs and takeoffs. Color-coded housings minimize user confusion and the potential of cross mating circuits.
-

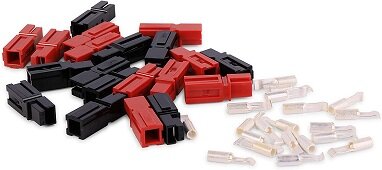

Anderson Powerpole PP45 45A Red & Black Kit with 10-14AWG ContactsSpecial Price $6.93 Regular Price $7.92 -

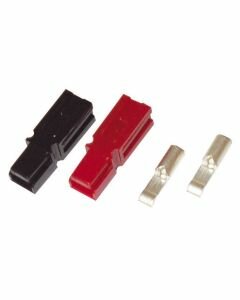

Anderson Powerpole PP75 75A Red & Black Kit with 6AWG ContactsSpecial Price $8.80 Regular Price $9.90
