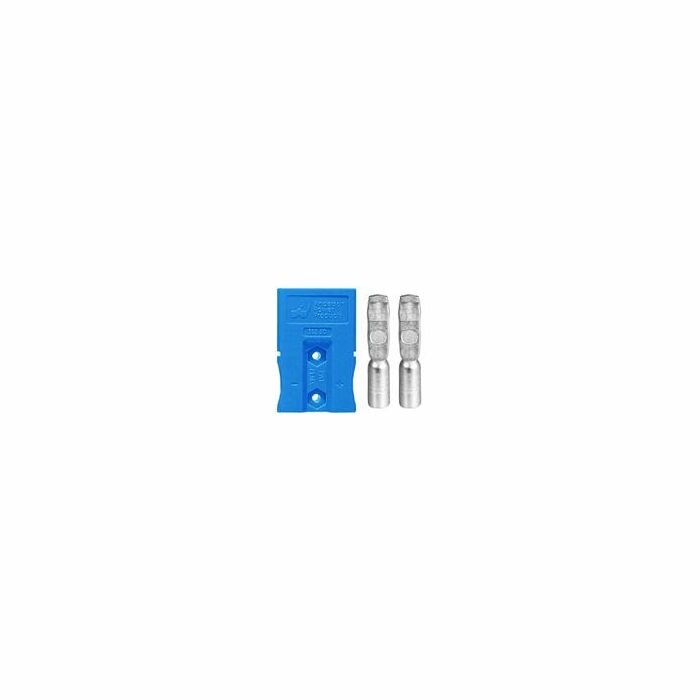

Anderson SBS50BLU Touch Safe 2 Pole Connector - Blue

Anderson SBS50BLU Touch Safe 2 Pole Connector - Blue

Touch Safe Interface

• Can safely be used in through panel applications
• Minimizes potential contact with live circuits per IEC 60950

Wire-to-Wire and Wire-to-Board Configurations

• Allows one connector to meet multiple needs

Ground or Auxiliary Contacts Integrated into the One Piece Housing

• Meets all connection requirements in one compact connector housing
• The patented SBS® connector family is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits. This is of particular importance in applications where DC voltages exceed 30 volts and can be health threatening. Wire-to-wire and wire-to-board  configurations both provide power contacts rated up to 110 amps. The SBS®75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS®75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
• Touch Safe Interface - Can safely be used in through panel applications - Minimizes potential contact with live circuits per IEC 60950
• Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
• Ground or Auxiliary Contacts Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing

SBS®50 Standard Housings
Polycarbonate housings feature 2 positions all finger proof.
Genderless design mates with itself. Mechanical keys are color coded.

Color   Voltage     Code

Red     24V           SBS50RED

Gray    36V           SBS50GRA

Blue    48V           SBS50BLU

Green 72V           SBS50GRN

Black  80V           SBS50BLK

Brown 96V          SBS50BRN

White 192V         SBS50WHT
